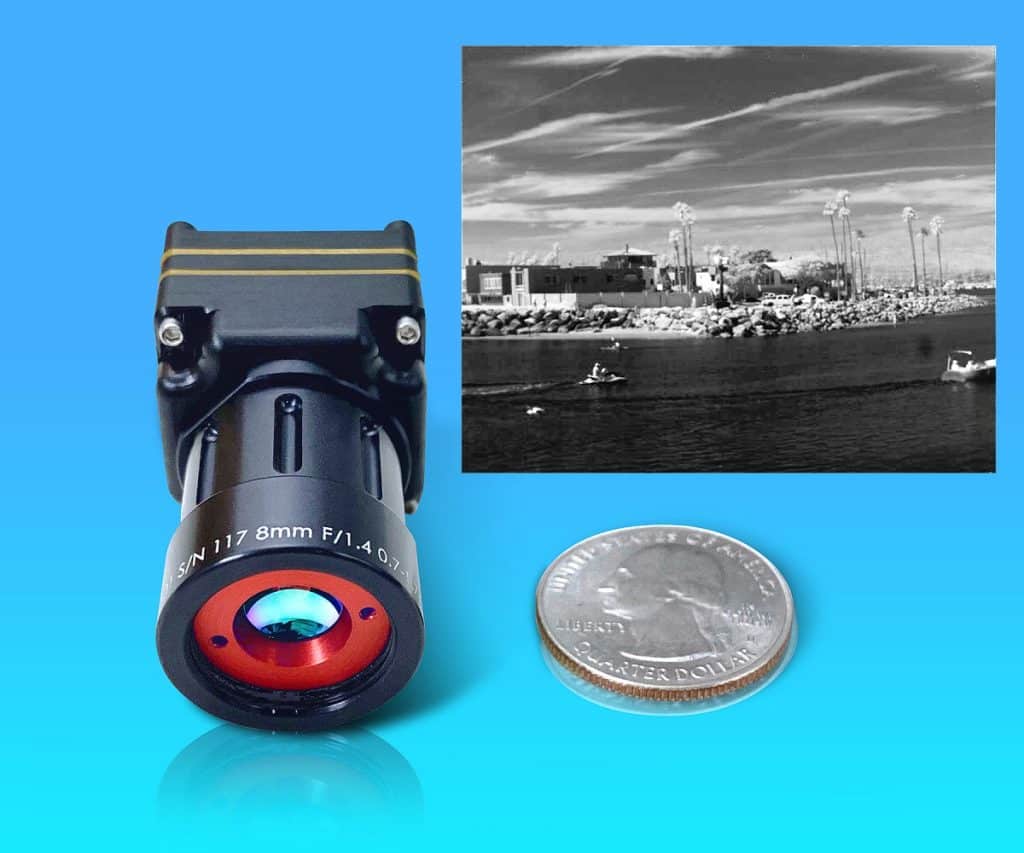

Global engineering expert and infrared imaging technologies supplier Attollo Engineering has introduced the Phoenix, which is a 640 x 512 shortwave infrared (SWIR) camera with the industry’s smallest VGA sensor and an extremely small 5 µm pixel pitch.

Described as “revolutionary,” the cost-efficient and miniature sensor is ideally suited for broadband imaging, as well as daylight and nighttime laser see-spot and range-gated imaging.

Small gimbals and other low size, weight, and power (low-SWaP) devices, such as handheld, helmet- and soldier-mounted systems would all benefit from being equipped with the indium gallium arsenide (InGaAs) uncooled SWIR camera. The camera can also be used for machine vision, precision agriculture, driver vision enhancement (DVE), covert illuminated imaging, and laser designator imaging and decode (with separate Attollo laser event detector module). Compared to competitive SWIR cameras, Attollo Phoenix also offers significant cost savings at the system level.

The high-performance, InGaAs 640 x 512, 5 µm pixel pitch SWIR camera’s spectral response ranges from 1.0 µm to 1.65 µm with more than 99.5 percent operability and 70-plus percent quantum efficiency. Selectable frame rates include 30 Hz, 60 Hz, 120 Hz, and 220 Hz, with windowing available.

The Phoenix has a global shutter imaging mode and presets and user-defined integration time of 0.1µs (minimum). It also has triggering options of sync-in (low-latency see-spot and range-gating) and sync-out. Other specifications include onboard processing with non-uniformity corrections (NUCs) and bad pixel replacement.
